DAA IDPA PDR PRO-II Belt Ride Hanger Kit

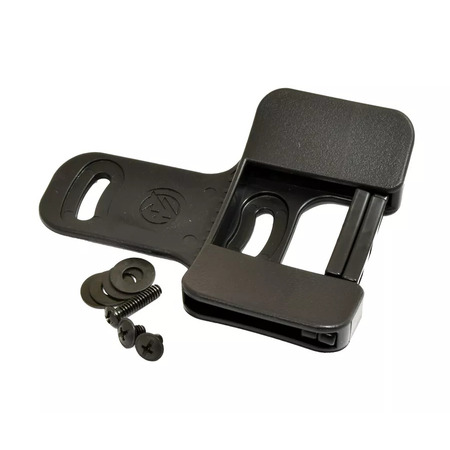

The PDR-PRO-II Belt Ride Ambidextrous Hanger Kit includes all you need to use your DAA PDR PRO-II holster body with this hanger kit, turning the holster into an IDPA compatible holster.

This hanger positions the holster body up close against the body and provides you a solid, yet tilt adjustable holster mount. It can be used with 1.5-2” wide belts and is fully ambidextrous, working equally well for RH or LH holsters.

In order to assemble the PDR-PRO-II Belt Ride Ambidextrous Hanger Kit to your PDR PRO-II holster follow these steps:

1. Remove your PDR PRO-II hanger, by unlocking the screw in the ball joint and sliding it down, off the rail.
2. Remove the rail. Keep the small flat screws safety with the rail.
3. Place two washers over each screw nut, then the hanger, and finally the short screws. Adjust the required tilt angle and tighten.
4. If you are using the belt spacers (most will, as most use a 1.5” belt) you can choose to have those spacers both above, below, or one above and one below the belt as you thread it through. This will provide you some height adjustment.
5. If you need to remove a belt spacer, rotate it 90deg and then slide it out. A little force is required.
6. If you plan to use your holster in an IDPA match, you will want to replace the tension adjustment thumb-screw with the Philipps-head screw, including in this kit.

Please note: This PDR-PRO-II Belt Ride Ambidextrous Hanger Kit can only be used with PDR PRO-II holster bodies (Not the older PDR PRO). The newer PDR PRO-II body is the one that has an aluminum rail running up its inner side, which is attached with only 2 mounting points. (not the older plastic T-rail which had 3 mounting points).
